01 Product DefinitionTcCryo YDS-10 is a portable and compact liquid nitrogen dewar available in multiple capacities and neck sizes. It adopts an aerospace-grade aluminum alloy housing and a high-vacuum multi-layer insulation structure to reduce LN2 evaporation loss. This cryogenic vessel delivers reliable ultra-low-temperature performance for livestock semen preservation, laboratory sample storage, research use, veterinary applications, and field transport. It supports both stationary storage and short-distance carrying, providing stable cryogenic conditions for different sample types and working scenarios.
02 Core Selling Points1. High-Vacuum Insulation: Multi-layer insulation reduces LN2 consumption and extends static holding time.
2. Aluminum Alloy Construction: Aerospace-grade aluminum keeps the tank lightweight for easy carrying.
3. Multiple Neck Sizes: Available neck configurations match different canisters, racks, and sample access requirements.
4. Low LN2 Consumption: Low static evaporation rate helps reduce refilling frequency for daily use.
5. Sample Organization: Canisters and racks support orderly sample classification and identification.

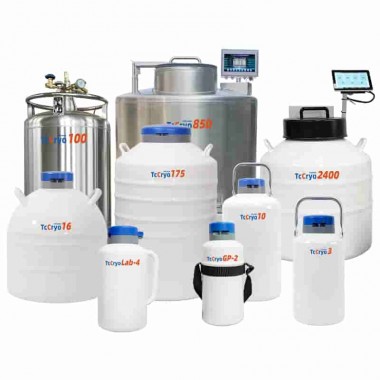

6. Series Capacity Options: Multiple capacities cover portable field use, small laboratories, routine storage, and longer-term storage.
03 Key Specifications
04 Application Scenarios
Livestock & Artificial Insemination
Suitable for frozen semen storage at breeding stations, farms, and veterinary field applications.
Laboratory Sample Storage
Suitable for cryogenic storage of biological samples and laboratory materials requiring stable LN2 conditions.
Research Institutions
Supports routine cryogenic sample storage in universities and research laboratories.
Field / Portable Use
Portable structure for on-site sampling, short-distance transport, and small-batch sample preservation.
Veterinary Applications
Suitable for veterinary sample storage and field breeding operations.

05 Manufacturing, Quality Control & OEM SupportAll TcCryo liquid nitrogen containers are manufactured through a process including aerospace-grade aluminum inspection, precision cutting and forming, ultrasonic cleaning, precision welding, multi-layer insulation wrapping, electrostatic powder coating, high-vacuum processing, helium mass spectrometry leak detection, and final QC.
Every unit passes helium leak detection, vacuum performance, sealing, static evaporation rate, and appearance/structure inspection before delivery.
TcCryo supports custom logo, private label, model selection, packaging customization, matching accessories, documentation, and distributor product materials.
As a specialized manufacturer of cryogenic liquid nitrogen containers, TcCryo produces storage series, dry shipper series, and self-pressurized LN2 dispenser series for livestock breeding, life-science laboratories, biotech companies, and research institutions worldwide, providing standardized cryogenic tanks and flexible OEM and distributor cooperation solutions.
06 FAQQ1: How do I choose the right liquid nitrogen tank capacity?
Choose 1L-3L for portability (medical/lab), 6L-10L for balanced field use (semen storage), and 15L-50L for stationary long-term storage.
Q2: What neck diameter should I choose?
Select 50mm for minimum evaporation and maximum holding time, or 80mm-125mm for easier access to larger samples.
Q3: How long can liquid nitrogen be stored in the tank?
Static holding time ranges from 30 to 200+ days depending on specs; a standard 10L/50mm tank provides ~80 days.
Q4: What accessories are included with the tank?
Each standard tank includes 3-6 stainless steel canisters, a lockable cap, a protective padded jacket, and a manual.
07 CTANeed Help Choosing the Right LN2 Tank?
Tell us your: Application + Required Capacity + Sample Type + Neck Size + Quantity.
TcCryo can recommend a suitable configuration for
